Deskripsi

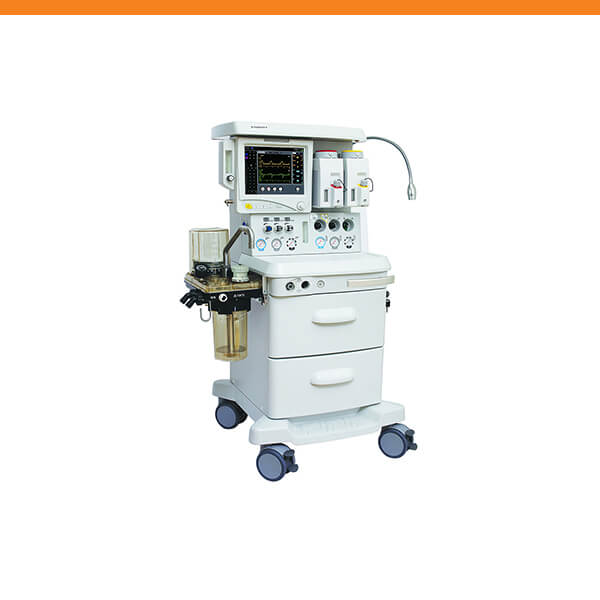

Specification :
- Display 12.1″ color touch screen
- Monitoring :
Tidal volume (VTI & VTE) : 0~2000 ml
Minute volume : 0~99 L/min
Breathing rate : 0~100 bpm
Paw : 0~80cmH2O
PEEP : 0~60 cmH2O
FiO2 : 18~100%
3 Waveform : P-T, F-T, V-T
2 Loops : F-V, V-P
EtCO2 (optional)
SpO2 (optional)
Anasthetic Gas Monitoring (optional)
Graph display P-T, F-T, V-T waveforms, P-V and F-V loops
Vaporizer
- Two vaporizer positions (Selectatec with interlock)
- Optional two vaporizer positios
- Agent type : Sevoflurane, Halothane, Isoflurane and Enflurane
- Filling type : Pour-fill, Easy-fill, Quick-fill or Key-fill
- Compensation : Flow, pressure and temperature compensation
Physical Specifications
- Weight : 160kg
- Screen : 12.1 inch TFT touch screen
- Casters : 10 cm diameter, with individual loacking brakes at front
- Casters : 0.19~6KPa
- Two drawers : 1800ml (Single Canister)
Electronic Specification
- Power supply : AC100~240V±10%, 50/60Hz±1%
- Battery backup : Minimum 240 mins
- Power consumption : ≤70VA
- LED Spotlight
Pneumatic Specification
- Gas supply : O2, N2Om Air and Reserved O2
- Input pressure : O.3Mpa~0.6Mpa
- Yoke : 1 x O2, 1 x N2O (optional)
- Flowmeter : O2 : 0~1L/min, 1~10L/min | N2O : 0~1L/min, 1~10L/min | AIR : 0~1L/min, 1~10L/min
- Auxiliary O2 flowmeter : 0~15L/min, flow tube indicator
- Pressure gauge : 3for pipeline gas, 2for cylinder gas (optional)
- O2 flush : 25~75L/min
- Bag/ventilation switch : switch for manual/spontaneous, ventilation and mechanical
- Operational modes : Closed and Semi-closed circuit system, semi open
- Driven mode : Pneumatically driven and electronically controlled
- AGSS (Passive) : Option
- ACGO
Ventilator Specification
- Patient type : Pediatric and adult
- Ventilation mode : VCV, PCV, SIMV-V, SIMV-P, PSV, STANDBY, PRVC, SIMV-PRVC (optional), MAN
- Tidal volume : 15~1500ml
- Frequency : 0, 1~80bpm, SIMV frequency : 4~60bpm
- I:E ratio : 1:10~8:1
- Inspiratory time : 0.1~120.0s
- Inspiratory pause : 0~50% of inspiratory time
- Trigger(Pressure) : 0~10cmH2O
- Trigger(Flow) : 0.5~20L/min
- Pinspired/Psupp : 5~50 cmH2O
- Minute Volume : 0~99 L
- MV(spontaneous) : 0~99 L/min
- Compliance Ventilation : system compliance ≤4Ml/hPa
- FiO2 : 21%~100%
- Electonic PEEP OFF, 4~30 cmH2O
Breathing System
- APL Valve : 0.19~6KPa
- CO2 canister : 1500ml (Single Canister)
- Autoclavable in 134°C to avoid cross-infection (except for O2 sensor and gauge), latex free
- Compensation for circuit leakage and compliance
- Automatic CO2 absorber by-pass
- ACGO
Alarm
- Tidal volume upper limit : 20~2000ml; lower limit : OFF 10~1990ml
- Paw upper limit : 1~80cmH2O; lower limit : 0~79cmH2O
- MV upper limit : 1~40L/min; lower limit : 0~39L/min
- FiO2 upper limit : 19~100vol%; lower limit : 18~99vol%
- Frequency upper limit : 1~80 bpm; lower limit : 0~79bpm
- Apnea
- Oxygen Deficiency
- Air Deficiency
- AC Power source failure
- Low Battery
